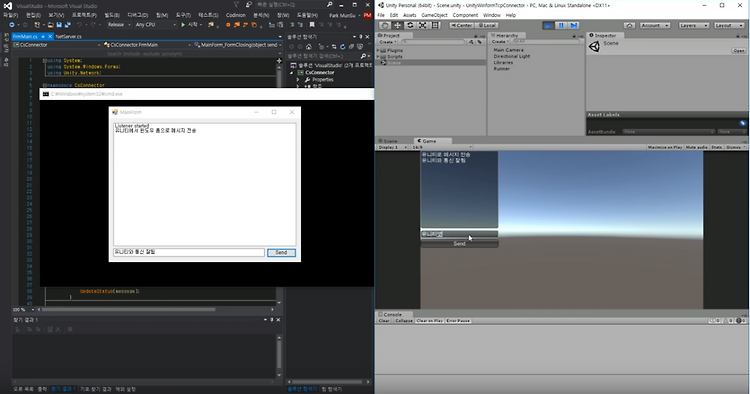

Tcp 소켓 사용, Unity3D+Winform 메시지 주고받기
소스파일 :
2017.01.24
no image
Tcp 라이브러리 - Unity3D 통신시 사용(멀티클라이언트 접속)
Unity3D 프로세스와 윈도우 폼 간의 통신 수행시 Tcp 서버에서 여러 클라이언트(유니티 프로세스)를 받을 수 있도록 하는 소스. Packet.cs using System; namespace Unity.Network { public enum PacketType { None, Connect, Reconnect, Disconnect, Chat, } [Serializable] public class Packet { public PacketType Type; } [Serializable] public class Connect : Packet { public string UserName; } [Serializable] public class ChatMessage : Packet { public string M..
2017.01.20
no image
C# NamedPipeline 사용예제
프로젝트 소스 : 1. Visual Studio 2015 프로젝트 2. 테스트용 윈도우 서버, 클라이언트 모두 포함. 3. VS에서 실행시 서버, 클라이언트 동시동작 - 필요없는 경우 "한개의 시작 프로젝트"로 변경 4. "NamedPipeWrapper" 라이브러리 - Unity3D에서도 이 라이브러리를 사용하기 위해 .net Framework 3.5 기준으로 작성 - "ThreadPool.QueueUserWorkItem"으로 쓰레드 할당
2017.01.16
no image
Unity Editor에서 코루틴 사용하기
CoroutineRunner.cs using System.Collections; using System.Collections.Generic; using UnityEditor; public static class CoroutineRunner { private static List _coroutineList = null; private static List _bufferList = null; public static IEnumerator Start(IEnumerator iterator) { if (_coroutineList == null) _coroutineList = new List(); if (_bufferList == null) _bufferList = new List(); if (_coroutineL..
2017.01.11
no image
C# FTP Class
유니티에서 사용하는 FTP 접속방법이다. 만약 Winform이나 WPF 등에서 사용하려면 코루틴(IEnumerator) 부분을 쓰레드나 테스크, 이도저도 귀찮으면 그냥 void로 처리해서 사용하면 된다. 소스 : 간단한 사용 예시다. Ftp ftp = new Ftp("ftp://서버주소", UserID, Password); FtpConnection.Download(ftp, "c:\test.txt", "Builds/test.txt"); FtpConnection.cs using System; using System.Collections; using System.IO; using System.Net; using UnityEngine; public class FtpConnect { private static r..
2017.01.06

목차





    목차

      Unity3D 프로세스와 윈도우 폼 간의 통신 수행시 Tcp 서버에서 여러 클라이언트(유니티 프로세스)를 받을 수 있도록 하는 소스.


      Packet.cs

      using System;

      namespace Unity.Network
      {
          public enum PacketType
          {
              None, Connect, Reconnect, Disconnect, Chat,
          }

          [Serializable]
          public class Packet
          {
              public PacketType Type;
          }

          [Serializable]
          public class Connect : Packet
          {
              public string UserName;
          }

          [Serializable]
          public class ChatMessage : Packet
          {
              public string Message;
          }
      }

      PacketBinder.cs

      using System;

      using System.Reflection;

      using System.Runtime.Serialization;



      namespace Unity.Network

      {

          sealed class PacketBinder : SerializationBinder

          {

              public override Type BindToType(string assemblyName, string typeName)

              {

                  Type returntype = null;

                  assemblyName = Assembly.GetExecutingAssembly().FullName;



                  string sharedAssemblyName = "SharedAssembly, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null";

                  typeName = typeName.Replace(sharedAssemblyName, assemblyName);



                  returntype = Type.GetType(String.Format("{0}, {1}", typeName, assemblyName));

                  return returntype;

              }

          }

      }



      LocalClient.cs

      using System;

      using System.IO;

      using System.Net.Sockets;

      using System.Runtime.Serialization.Formatters.Binary;



      namespace Unity.Network

      {

          public class LocalClient

          {

              private const string LocalIp = "127.0.0.1";

              public const int PortNumber = 10001;

              private const int BufferSize = 2048;



              private NetworkStream _stream;

              public NetworkStream Stream

              {

                  get { return _stream; }

              }



              private readonly BinaryFormatter _formatter;



              private TcpClient _client;

              private byte[] _buffer;



              public string UserName { get; set; }



              public event Connected OnConnected;

              public event Disconnected OnDisconnected;

              public event ConnectError OnConnectError;

              public event ReceiveObject OnReceiveObject;



              /// <summary>

              /// 클라이언트용 생성자

              /// </summary>

              public LocalClient() : this(null)

              {



              }



              /// <summary>

              /// 서버용 생성자

              /// </summary>

              /// <param name="client">이미 생성된 TcpClient</param>

              public LocalClient(TcpClient client)

              {

                  _client = client;



                  _formatter = new BinaryFormatter();

                  _formatter.Binder = new PacketBinder();



                  _buffer = new byte[BufferSize];

              }



              public void Start()

              {

                  if (_client != null)

                  {

                      _stream = _client.GetStream();



                      //서버 -> 클라이언트

                      BeginRead();

                  }

                  else

                  {

                      //클라이언트 -> 서버

                      StartClient();

                  }

              }



              private void StartClient()

              {

                  //클라이언트 -> 서버

                  _client = new TcpClient();



                  try

                  {

                      _client.BeginConnect(LocalIp, PortNumber, EndConnect, null);

                  }

                  catch (SocketException ex)

                  {

                      if (OnConnectError != null)

                          OnConnectError(ex);

                  }

              }



              private void EndConnect(IAsyncResult result)

              {

                  try

                  {

                      _client.EndConnect(result);

                      _stream = _client.GetStream();



                      if (OnConnected != null)

                          OnConnected(this);





                      BeginRead();

                  }

                  catch (SocketException ex)

                  {

                      if (OnConnectError != null)

                          OnConnectError(ex);

                  }

              }



              private void BeginRead()

              {

                  _stream.BeginRead(_buffer, 0, BufferSize, new AsyncCallback(ReadObject), null);

              }



              public void Close()

              {

                  _stream.Close();

                  _client.Close();

              }



              private void ReadObject(IAsyncResult result)

              {

                  int readSize = 0;



                  try

                  {

                      lock (_stream)

                      {

                          readSize = _stream.EndRead(result);

                      }



                      if (readSize < 1)

                          throw new Exception("Disconnect");





                      Packet packet = new Packet();

                      using (MemoryStream stream = new MemoryStream(_buffer))

                      {

                          packet = (Packet)_formatter.Deserialize(stream);

                      }



                      if (OnReceiveObject != null)

                          OnReceiveObject(this, packet);





                      lock (_stream)

                      {

                          BeginRead();

                      }

                  }

                  catch(Exception ex)

                  {

                      if (OnDisconnected != null)

                          OnDisconnected(this, ex);

                  }

              }



              public void SendPacket(Packet packet)

              {

                  byte[] data = null;

                  try

                  {

                      using (MemoryStream stream = new MemoryStream())

                      {

                          _formatter.Serialize(stream, packet);



                          data = stream.ToArray();

                      }



                      if (data == null || data.Length < 1)

                          return;



                      _stream.Write(data, 0, data.Length);

                      _stream.Flush();

                  }

                  catch

                  {



                  }//try

              }

          }



          public delegate void Connected(LocalClient client);

          public delegate void Disconnected(LocalClient client, Exception ex);

          public delegate void ConnectError(SocketException ex);

          public delegate void ReceiveObject(LocalClient client, Packet packet);

      }



      NetMultiServer.cs

      using System;

      using System.Collections.Generic;

      using System.Net.Sockets;

      using System.Threading;

      using Unity.Network;



      namespace CsConnector

      {

          public class NetMultiServer

          {

              private readonly TcpListener _listener;



              private readonly Dictionary<string, LocalClient> _clientTable;

              private readonly Thread _listenerThread;



              public NetMultiServer()

              {

                  _clientTable = new Dictionary<string, LocalClient>();



                  _listener = new TcpListener(System.Net.IPAddress.Any, LocalClient.PortNumber);

                  _listenerThread = new Thread(new ThreadStart(DoListen));

              }



              public void Start()

              {

                  _listenerThread.Start();

              }



              public void Close()

              {

                  _listener.Stop();

              }



              private void DoListen()

              {

                  try

                  {

                      _listener.Start();



                      do

                      {

                          TcpClient tcpClient = _listener.AcceptTcpClient();



                          LocalClient localClient = new LocalClient(tcpClient);

                          localClient.OnReceiveObject += ReceiveObject;

                          localClient.Start();

                      }

                      while (true);

                  }

                  catch (Exception)

                  {



                  }//try

              }



              private void ReceiveObject(LocalClient client, Packet packet)

              {

                  if (packet == null)

                      return;



                  switch (packet.Type)

                  {

                      case PacketType.Connect: OnConnected(client, packet); break;

                  }

              }



              private void OnConnected(LocalClient client, Packet packet)

              {

                  Connect connect = packet as Connect;

                  if (connect == null)

                      return;





                  client.UserName = connect.UserName;

                  _clientTable.Add(client.UserName, client);

              }



              private void SendPacket(LocalClient client, Packet packet)

              {

                  client.SendPacket(packet);

              }

          }

      }



      NetClient.cs

      using System;

      using Unity.Network;

      using UnityEngine;



      public class NetClient

      {

          private const string UserName = "UnityClient";



          private LocalClient _client;



          public event Chat OnChat;



          public NetClient()

          {



          }



          public void Start()

          {

              _client = new LocalClient();

              _client.OnConnected += Connected;

              _client.Start();

          }



          public void Close()

          {

              _client.Close();

          }



          private void Connected(LocalClient client)

          {

              Connect connect = new Connect()

              {

                  Type = PacketType.Connect,

                  UserName = UserName,

              };



              _client.UserName = UserName;

              _client.SendPacket(connect);

          }



          private void ConnectError(Exception ex)

          {

              Debug.Log("접속 에러\n" + ex.ToString());

          }



          private void ReceiveObject(LocalClient client, Packet packet)

          {

              if (packet == null)

                  return;



              switch (packet.Type)

              {

                  case PacketType.Chat: OnChatMessage(client, packet); break;

              }

          }



          private void OnChatMessage(LocalClient client, Packet packet)

          {

              ChatMessage message = packet as ChatMessage;

              if (message == null)

                  return;



              if (OnChat != null)

                  OnChat(message.Message);

          }



          private void SendPacket(LocalClient client, Packet packet)

          {

              client.SendPacket(packet);

          }



          public delegate void Chat(string message);

      }

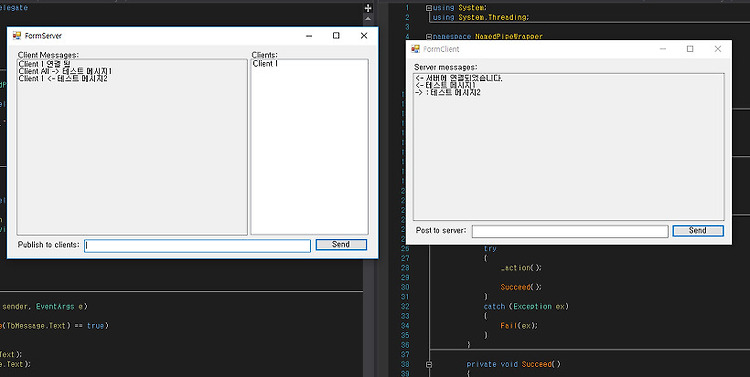

      C# NamedPipeline 사용예제

      닭장주인
      |2017. 1. 16. 21:12

      목차



        프로젝트 소스 :

        NamedPipelineWrapper.zip
        다운로드





        1. Visual Studio 2015 프로젝트



        2. 테스트용 윈도우 서버, 클라이언트 모두 포함.



        3. VS에서 실행시 서버, 클라이언트 동시동작

           - 필요없는 경우 "한개의 시작 프로젝트"로 변경



        4. "NamedPipeWrapper" 라이브러리

           - Unity3D에서도 이 라이브러리를 사용하기 위해 .net Framework 3.5 기준으로 작성

           - "ThreadPool.QueueUserWorkItem"으로 쓰레드 할당







        'CSharp' 카테고리의 다른 글

        C# FTP Class  (0) 2017.01.06

        목차

          CoroutineRunner.cs

          using System.Collections;

          using System.Collections.Generic;

          using UnityEditor;



          public static class CoroutineRunner

          {

              private static List _coroutineList = null;

              private static List _bufferList = null;



              public static IEnumerator Start(IEnumerator iterator)

              {

                  if (_coroutineList == null)

                      _coroutineList = new List();



                  if (_bufferList == null)

                      _bufferList = new List();



                  if (_coroutineList.Count == 0)

                      EditorApplication.update += Update;



                  _bufferList.Add(iterator);



                  return iterator;

              }



              private static bool Find(IEnumerator iterator)

              {

                  foreach (EditorCoroutine coroutine in _coroutineList)

                  {

                      if (coroutine.Find(iterator) == true)

                          return true;

                  }



                  return false;

              }



              private static void Update()

              {

                  _coroutineList.RemoveAll

                  (

                      coroutine => { return coroutine.MoveNext() == false; }

                  );



                  if (_bufferList.Count > 0)

                  {

                      foreach (IEnumerator iterator in _bufferList)

                      {

                          if (Find(iterator) == false)

                              _coroutineList.Add(new EditorCoroutine(iterator));

                      }



                      _bufferList.Clear();

                  }



                  if (_coroutineList.Count == 0)

                  {

                      EditorApplication.update -= Update;

                  }

              }



              private class EditorCoroutine : IEnumerator

              {

                  private Stack _stack;



                  public EditorCoroutine(IEnumerator iterator)

                  {

                      _stack = new Stack();

                      _stack.Push(iterator);

                  }



                  public bool MoveNext()

                  {

                      IEnumerator i = _stack.Peek();



                      if (i.MoveNext() == true)

                      {

                          object result = i.Current;

                          if (result != null && result is IEnumerator)

                          {

                              _stack.Push((IEnumerator)result);

                          }



                          return true;

                      }

                      else

                      {

                          if (_stack.Count > 1)

                          {

                              _stack.Pop();



                              return true;

                          }

                      }



                      return false;

                  }



                  public void Reset()

                  {

                      throw new System.NotSupportedException(

                                "This Operation Is Not Supported.");

                  }



                  public object Current

                  {

                      get { return _stack.Peek().Current; }

                  }



                  public bool Find(IEnumerator iterator)

                  {

                      return _stack.Contains(iterator);

                  }

              }

          }





          C# FTP Class

          닭장주인
          |2017. 1. 6. 16:42

          목차

            유니티에서 사용하는 FTP 접속방법이다. 만약 Winform이나 WPF 등에서 사용하려면 코루틴(IEnumerator) 부분을 쓰레드나 테스크, 이도저도 귀찮으면 그냥 void로 처리해서 사용하면 된다.



            소스 :

            Ftp.cs
            다운로드



            간단한 사용 예시다.

            Ftp ftp = new Ftp("ftp://서버주소", UserID, Password);
            FtpConnection.Download(ftp, "c:\test.txt", "Builds/test.txt");



            FtpConnection.cs

            using System;

            using System.Collections;

            using System.IO;

            using System.Net;

            using UnityEngine;



            public class FtpConnect

            {

                private static readonly int BufferSize = 2048;



                public struct FileInfo

                {

                    public bool IsDirectory;

                    public string Name;

                    public long Size;

                }



                public static IEnumerator Upload(Ftp ftp, string localFilePath, string remoteFilePath)

                {

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.UploadFile);



                    FileStream localFileStream = new FileStream(localFilePath, FileMode.Open);

                    byte[] fileBuffer = new byte[BufferSize];

                    int fileSize = localFileStream.Read(fileBuffer, 0, BufferSize);



                    while (fileSize != 0)

                    {

                        ftp.Stream.Write(fileBuffer, 0, fileSize);

                        fileSize = localFileStream.Read(fileBuffer, 0, BufferSize);

                    }



                    localFileStream.Close();

                    ftp.Dispose();



                    yield return null;

                }



                public static IEnumerator Download(Ftp ftp, string localFilePath, string remoteFilePath)

                {

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.DownloadFile);



                    FileStream localFileStream = new FileStream(localFilePath, FileMode.Create);

                    byte[] fileBuffer = new byte[BufferSize];

                    int fileSize = ftp.Stream.Read(fileBuffer, 0, BufferSize);



                    while (fileSize > 0)

                    {

                        localFileStream.Write(fileBuffer, 0, fileSize);

                        fileSize = ftp.Stream.Read(fileBuffer, 0, BufferSize);

                    }



                    localFileStream.Close();

                    ftp.Dispose();



                    yield return null;

                }



                public static void Delete(Ftp ftp, string remoteFilePath)

                {

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.DeleteFile);

                    ftp.Dispose();

                }



                public static void Rename(Ftp ftp, string remoteFilePath, string newFileName)

                {

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.Rename);

                    {

                        ftp.Request.RenameTo = newFileName;

                        ftp.Response = (FtpWebResponse)ftp.Request.GetResponse();

                    }

                    ftp.Dispose();

                }



                public static DateTime GetFileCreatedDateTime(Ftp ftp, string remoteFilePath, bool isKorean = true)

                {

                    DateTime dateTime;

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.GetDateTimestamp);

                    {

                        dateTime = ftp.Response.LastModified;

                    }

                    ftp.Dispose();



                    dateTime = isKorean ? dateTime.AddHours(9) : dateTime;

                    return dateTime;

                }



                public static long GetFileSize(Ftp ftp, string remoteFilePath)

                {

                    long size = 0;

                    ftp.Connect(remoteFilePath, WebRequestMethods.Ftp.GetFileSize);

                    {

                        size = (int)ftp.Response.ContentLength;

                    }

                    ftp.Dispose();



                    Debug.Log(size);

                    return size;

                }



                public static string[] GetListDirectory(Ftp ftp, string remoteDirectory)

                {

                    string directoryRaw = "";

                    ftp.Connect(remoteDirectory, WebRequestMethods.Ftp.ListDirectory);

                    {

                        StreamReader reader = new StreamReader(ftp.Stream);



                        while (reader.Peek() != -1)

                        {

                            if (directoryRaw.Length > 0)

                                directoryRaw += "|";



                            directoryRaw += reader.ReadLine();

                        }



                        reader.Close();

                    }

                    ftp.Dispose();



                    return directoryRaw.Split("|".ToCharArray());

                }



                public static FileInfo[] GetListDirectoryDetails(Ftp ftp, string remoteDirectory)

                {

                    string directoryRaw = "";

                    ftp.Connect(remoteDirectory, WebRequestMethods.Ftp.ListDirectoryDetails);

                    {

                        StreamReader reader = new StreamReader(ftp.Stream);



                        while (reader.Peek() != -1)

                        {

                            if (directoryRaw.Length > 0)

                                directoryRaw += "|";



                            directoryRaw += reader.ReadLine();

                        }



                        reader.Close();

                    }

                    ftp.Dispose();





                    string[] directories = directoryRaw.Split("|".ToCharArray());

                    FileInfo[] fileInfo = new FileInfo[directories.Length];

                    for(int i = 0; i < directories.Length; i++)

                    {

                        string[] tokens = directories[i].Split(new[] { ' ' }, StringSplitOptions.RemoveEmptyEntries);



                        fileInfo[i] = new FileInfo();

                        fileInfo[i].IsDirectory = tokens[0].StartsWith("d") ? true : false;

                        fileInfo[i].Size = long.Parse(tokens[4]);

                        fileInfo[i].Name = tokens[8];

                    }



                    return fileInfo;

                }



                public static bool IsExistDirectoryOrFile(Ftp ftp, string checkDirectoryName, string checkName)

                {

                    string[] arr = GetListDirectory(ftp, checkDirectoryName);



                    foreach(string temp in arr)

                    {

                        if (temp == checkName)

                            return true;

                    }



                    return false;

                }



                public static void CreateDirectory(Ftp ftp, string newDirectoryName)

                {

                    bool isCheck = IsExistDirectoryOrFile(ftp, newDirectoryName, newDirectoryName);

                    if (isCheck == true)

                        return;



                    ftp.Connect(newDirectoryName, WebRequestMethods.Ftp.MakeDirectory);

                    ftp.Dispose();

                }

            }



            public class Ftp

            {

                private string _address;

                public string Address

                {

                    get { return _address; }

                }



                private string _id;

                private string _pw;



                private FtpWebRequest _request = null;

                public FtpWebRequest Request

                {

                    get { return _request; }

                }



                private FtpWebResponse _response = null;

                public FtpWebResponse Response

                {

                    get { return _response; }

                    set { _response = value; }

                }



                private Stream _stream = null;

                public Stream Stream

                {

                    get { return _stream; }

                }



                public Ftp(string address, string id, string pw)

                {

                    _address = address;

                    if (_address.Substring(_address.Length - 1, 1) != "/")

                        _address += "/";



                    _id = id;

                    _pw = pw;

                }



                public void Connect(string filePath, string method)

                {

                    try

                    {

                        string path = _address + filePath;



                        _request = (FtpWebRequest)FtpWebRequest.Create(path);

                        _request.Credentials = new NetworkCredential(_id, _pw);

                        _request.UseBinary = true;

                        _request.UsePassive = true;

                        _request.KeepAlive = true;

                        _request.Method = method;



                        switch(method)

                        {

                            case WebRequestMethods.Ftp.UploadFile:

                                _stream = _request.GetRequestStream();

                                break;



                            case WebRequestMethods.Ftp.DeleteFile:

                            case WebRequestMethods.Ftp.GetDateTimestamp:

                            case WebRequestMethods.Ftp.GetFileSize:

                            case WebRequestMethods.Ftp.MakeDirectory:

                                _response = (FtpWebResponse)_request.GetResponse();

                                break;



                            case WebRequestMethods.Ftp.DownloadFile:

                            case WebRequestMethods.Ftp.ListDirectoryDetails:

                            case WebRequestMethods.Ftp.ListDirectory:

                                _response = (FtpWebResponse)_request.GetResponse();

                                _stream = _response.GetResponseStream();

                                break;

                        }

                    }

                    catch (Exception ex)

                    {

                        throw ex;

                    }

                }



                public void Dispose()

                {

                    if (_stream != null)

                        _stream.Close();



                    if (_response != null)

                        _response.Close();



                    _request = null;

                }

            }







            'CSharp' 카테고리의 다른 글

            C# NamedPipeline 사용예제  (0) 2017.01.16
